An Aston Martin DB9 by the Numbers

Car nerds are often heard uttering this phrase when talking about cars:

Numbers Matching

What they are generally referring to is the desire to have some proof that the car still has its original power train (engine/transmission/etc.) as when it left the factory.  A car with an engine or tranny swap is potentially less desirable than an ‘all original’.

This got me thinking – where are all the numbers on the DB9?

In this article I will chronicle where I find them so you can dig them up on your car too!  [Share where you find them too in the comment section below and I will keep this updated]

What should your numbers be?

Finding out your factor original numbers isn’t difficult, but you’ll need to reach out to your Aston Martin Dealer or contact the Aston Martin Heritage Trust (see my discussion on how on the My Car page).   I did both, and the three numbers I think that matter most are:

  • Your VIN number
    • Looks like this SCFAD01A35GA01906
  • Your Engine number
    • Looks like this AM04/10305
  • Your Vehicle number
    • This is the factor number for your car as it was being built, and inspiration for the title of my blog.  My car number is 240-1936

One last thing to consider might be ‘original color’ and this number is also hidden on the car.

Finding your Numbers

The official Aston Martin Workshop Manual has a section in its introduction that lists where to find the VIN and Transmission numbers.  You can check it out here.  Since their pictures are taken on parts not even installed in a car, my descriptions below might be a little more helpful in finding some of them in-situ.

VIN Number

The VIN number is located in several locations on the car.  Why?  So you can spot a scam.  All four VINs should match of course, if they don’t, walk away.

  • Location 1 – On the Dash.  This is the easy one, we all look here for the VIN number.  Driver side front edge of the dash, as seen through the windscreen.  In the close up you can see it is engraved, not a printed sticker.

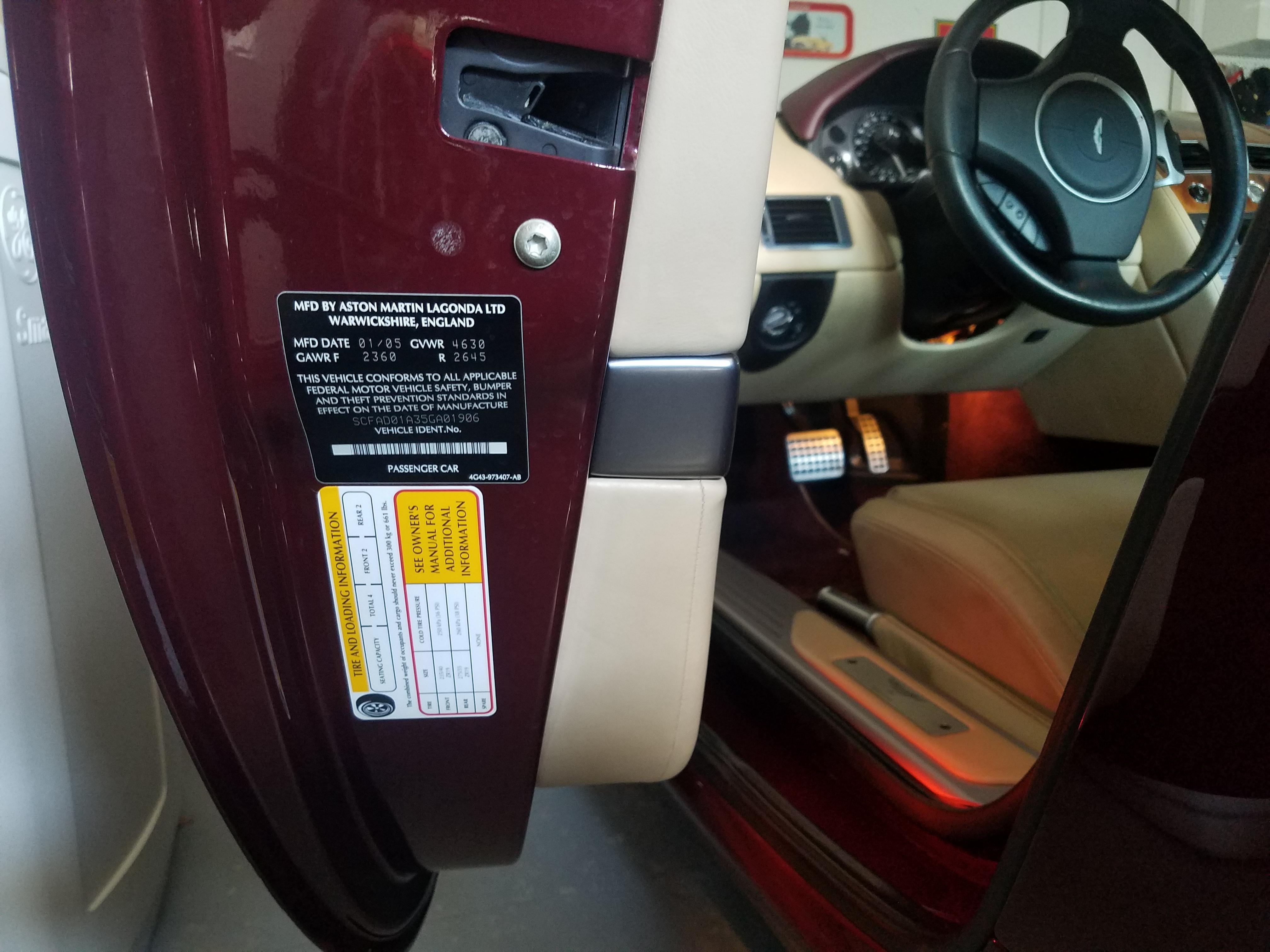

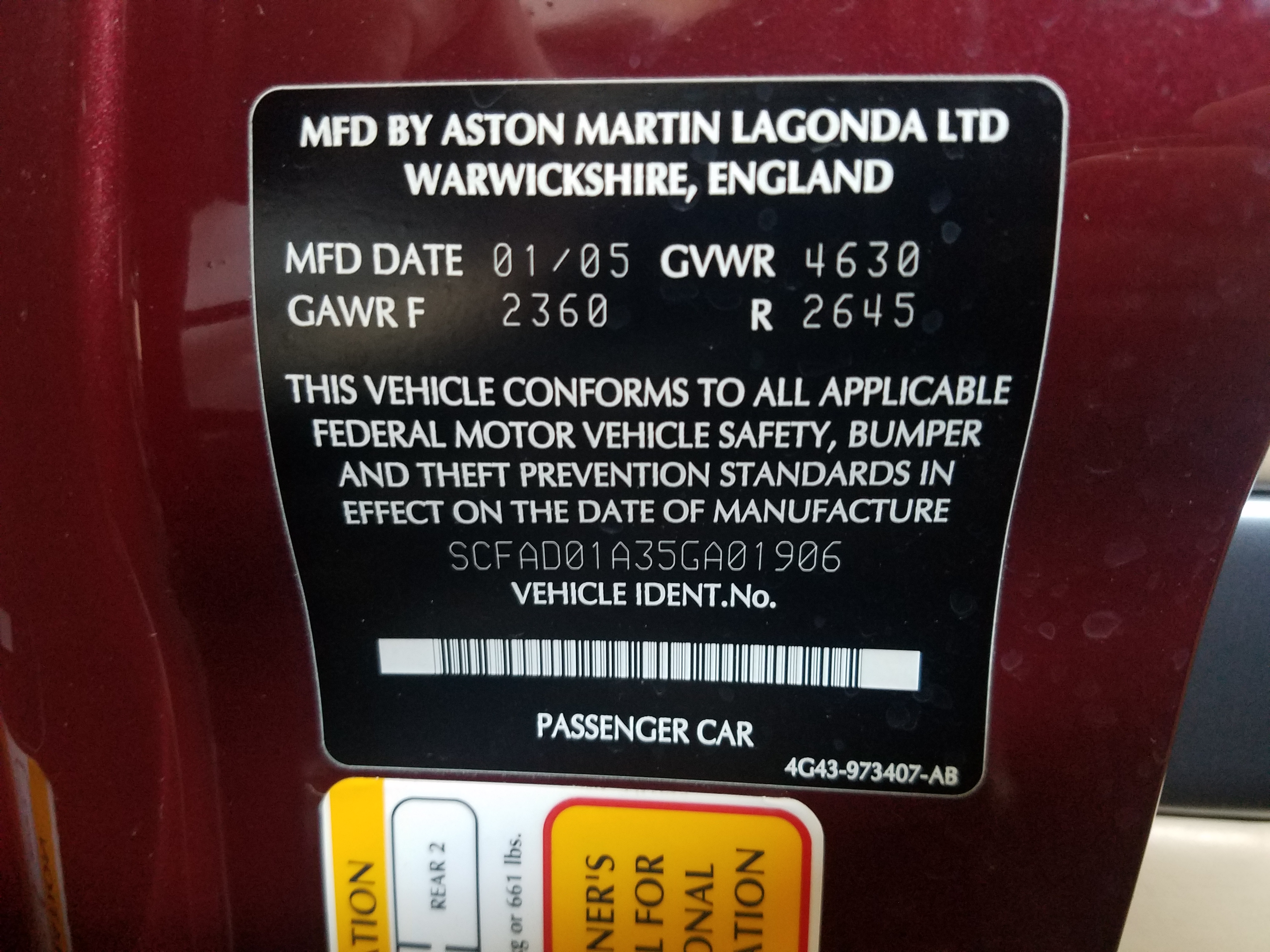

  • Location 2 – Drivers Side Door.  When you open the drivers side door there are a couple of stickers on the end of the door near the latch assembly.  One is your tire pressure sticker (mentioned in my article on setting your tire pressures properly), and the other is the VIN number sticker.   Along with the VIN you can see the data of Manufacture (January 2005 in for my car), the Gross Vehicle Axle Weights (overall, front and rear) in pounds.  Since this stickers weights are listed in pounds, and the similar data on the location 3 sticker (below) is in kilograms, I wonder if this sticker is strictly for the US Market. [Readers from other countries, please let me know]

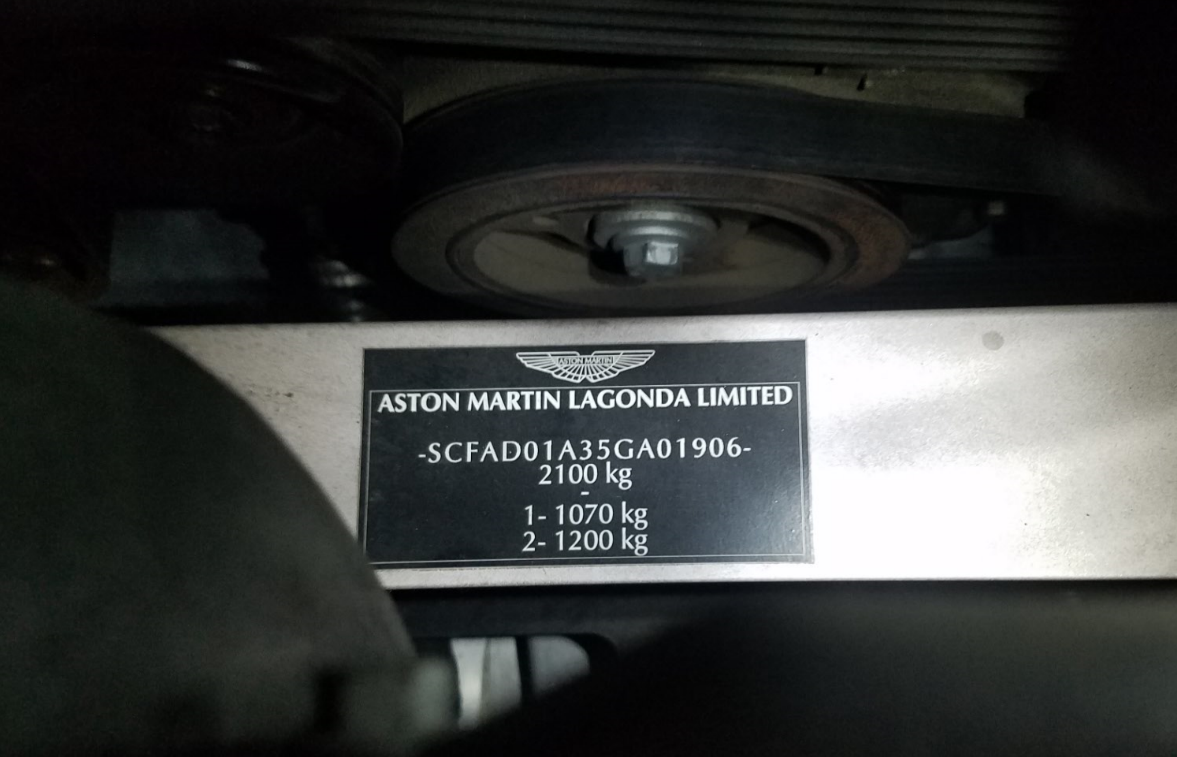

  • Location 3 – Engine Bay.   If you open the Hood and look down right between the radiator and the front of the engine, there is a cross member.  On the cross member will be a sticker with the VIN.  Just use an inspection light and peer straight down by the crank pulley.

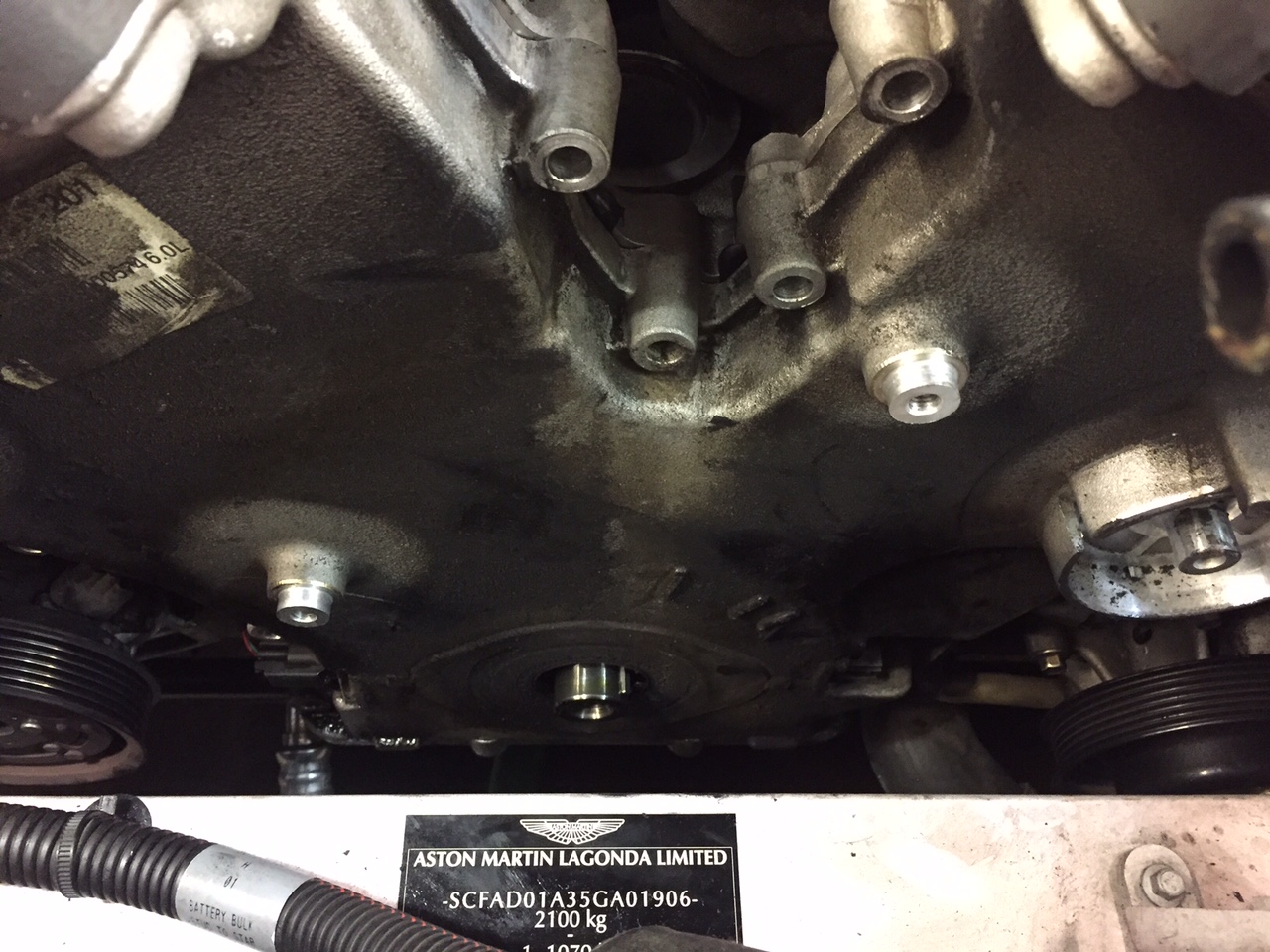

    Another view with water pump and ancillaries removed
  • Location 4 – Right Hand Floor.  This one is hidden, designed to trip up the casual forger.  Pull up the carpet in the right hand foot well and it will be stamped in the aluminum floor pan.  I haven’t gone in for a photo of this one yet.
  • Location 5 – Through the Infotainment System.   This one is available through the electronics, and accessed via the Menu system on the car Infotainment audio system.   Press the Menu button next to the volume/on/off knob, then select Car Settings/Information/VIN Number.  You’ll be rewarded with the VIN on screen.Aston Martin DB9 VIN Number available through Infotainment System Display

Chassis Number

This is an easy one.  It is the last 6 digits of your VIN number.  No separate stickers or plates to identify it.   It will start with an “A” for a coupe, or a “B” for a Volante (convertible).  My car is chassis number A01906.

Engine Number

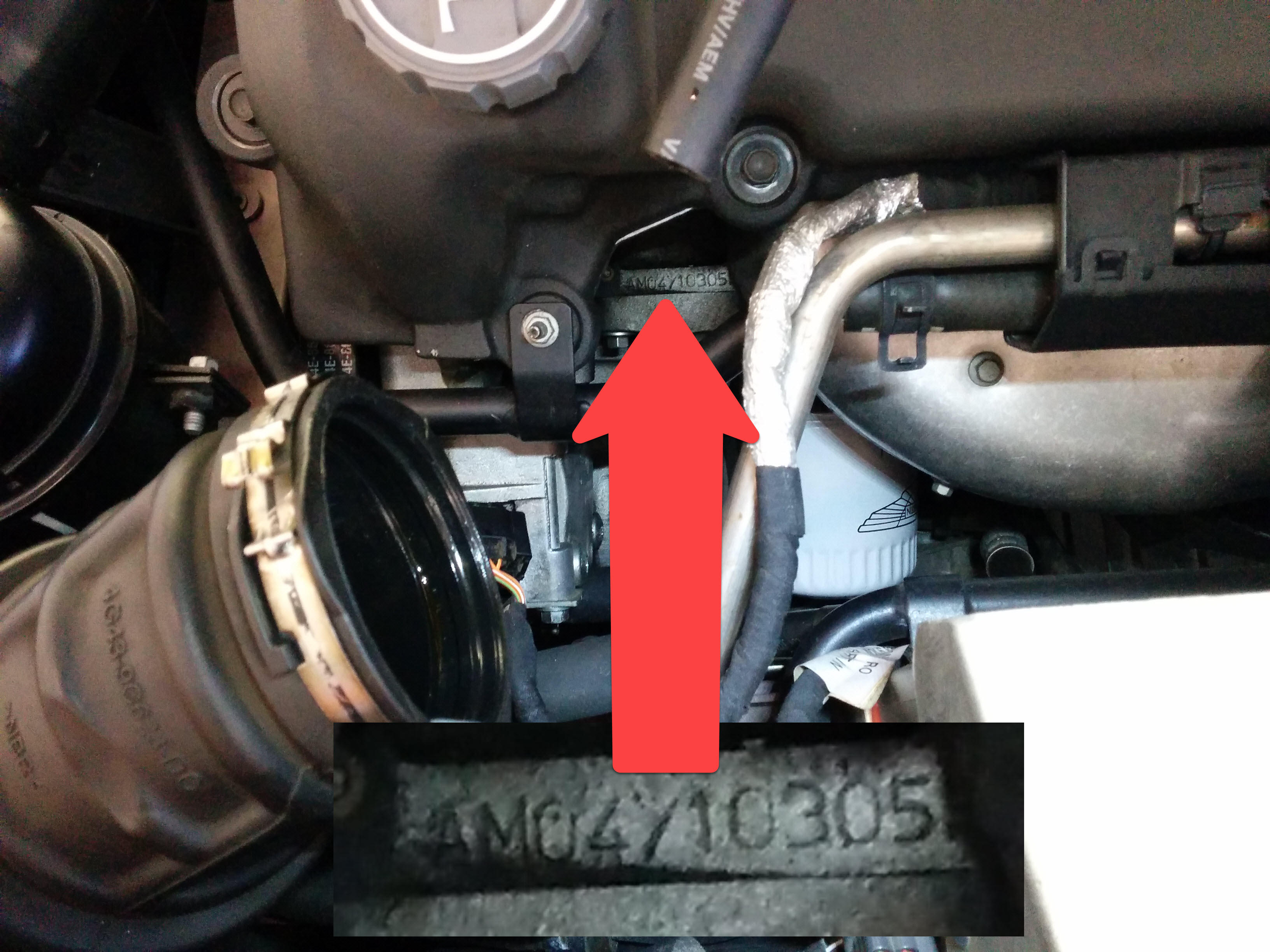

The engine number is stamped on the left hand side of the engine block.  It’s not easy to see, but you CAN see it without removing any parts of the car.  Use an inspection light and peer down carefully in a dark garage.  You might want to use a smart phone and snap a picture like I did below so you can zoom it up to be able to actually read it.

Peering down with an inspection light
Picture taken with Throttle Body and Intake Manifold Removed

Vehicle Number

The Vehicle Number is Aston Martin’s internal build number during production that represented your car.   For DB9’s, it appears they all start with 240- and then end with a number unique to your vehicle.  For my car, it was 1936, so 240-1936.

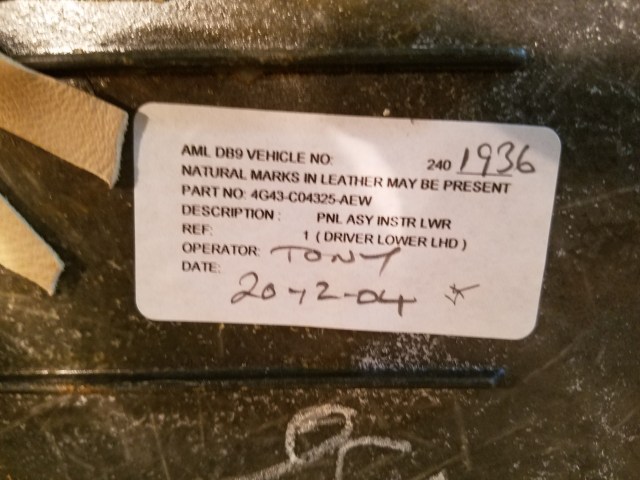

I have found the car number all over the back of the Interior panels.   Just about any interior panel I have had off has had this number written across it as the trimmers used it to keep track of my cars matching interior panels.   A really easy one to ‘pop off’ for a quick check would be the Driver Side Lower Panel (essentially the panel in front of your knees).  It just pulls off fairly simply (check out my video on how to do this here).   On the back you’ll find something like this.

Transmission Number (Automatic)

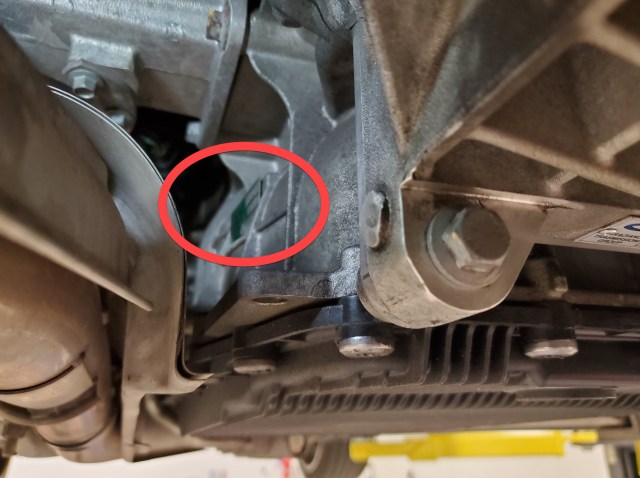

I’ve not crawled under and looked for this one yet, so stay tuned.  The workshop manual says its on the Left Hand side, and from the photo it appears it might be on a plate located just ahead of the rubber exhaust hanger .

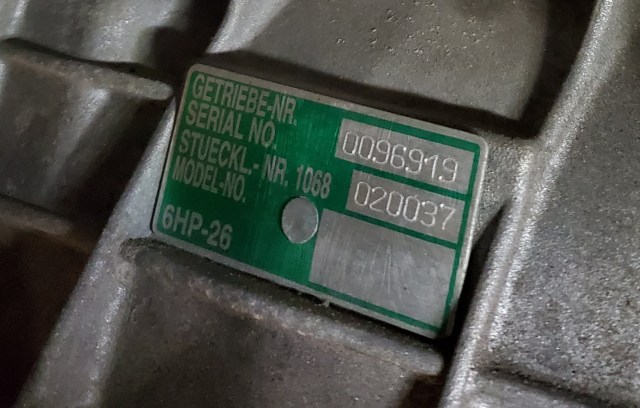

While I had the rear undertray removed as part of my 2 year service I was able to stick my camera in and finally get a picture of it.   Model 020037 and Serial Number 0096919.

Paint Color

You have a couple of ways of finding the original paint color.

The first is by contacting your Aston Martin Dealer and asking them for a print out of your cars original specification is easy enough to do.  I did this as part of researching the data on the ‘My Car’ page (check it out here).

The second is by finding the factory sticker hidden on the car.  It’s kept just under the front scuttle plate in the engine compartment.  You have to carefully remove the 18 T30 Torx bolts to remove the plate.  When you do, you’ll find a sticker on the cross member that lists your car number (241936 in my case), the original AST paint color (Merlot Red AST1342 in my case) and then another phrase which I presume is the Primer color (Light Grey in my case).

Original Paint Code Sticker hidden under front skuttle plate (removed)

8 thoughts on “An Aston Martin DB9 by the Numbers

  1. Cor Stakenborg

    Steve, I just upgraded the GPS maps to 2015/16 version on my 2009 AM DB9 which is a hard drive based GPS unit, unlike what you have in your 2005 car. The Volvo DVD disc worked faultlessly and took 4 hours to load. I can give details for a post if you like.

    Volvo VNS HDD 2015 – 2016 Navigation Map Update DVD (MMM+) North America. $27 on eBay.


  2. Hi Cor,

    That would be great if you want to provide something for me, and I can put up a post on how to update your GPS map system. What would someone with a non-HD model do? Just swap the disk and leave it in the reader? Anyways, if you are up for sharing, please do!


  3. Caryl Hathaway

    Hello Steve,

    Just a quick note from Canada to say thank you again for all the incredible hard work you have put into helping us understand, repair and enjoy our DB9’s…. and a special thank you to your wife for her understanding and support.

    I came across one of your messages regarding ‘donuts’ in your back alley 8^)

    I was concerned while watching, how your tires were handling the slight ‘wear and tear’ until at the end you mentioned that you were purchasing a new set.

    Unbeknownst to me, and a bit intriguing none the less, was your reference to page 5-20 in the owners manual that describes how to burn-up – err ‘burn-out’ your very expensive rubber! As I chuckled and smirked at how preposterous this must be – I excitedly ran to my owners manual, imagining the sound and aroma of burning rubber…. only to find that my pages ran up to only 5-16.

    Where you just toying with us, or do I need to upgrade my manual.

    Anyway, keep up the great work.

    Caryl Hathaway – 2005 DB9


    1. Hi Caryl. Hello to the great white north! Was up in Vancouver a few weeks ago, and Edmonton in January (brrrr). Sure don’t miss it.

      Gotcha. Yes, it was me toying with people – I am a bad man. You were not the only one. Thought it would be worth a chuckle for everyone at least. I do have a page 5-20 if you’d like one of your own.

      Glad you saw my close on replacing the tires. Just having some fun with the last of the tread before I headed to the tire shop.

      Thanks for watching!


  4. Mike

    The numbering convention seems to be a bit different with the DB9 Volantes.
    My 2006 Volante Drivers Side Lower Panel bears the date 13-10-05 (about ten months after yours). The vehicle number listed is (printed) 240 (same as yours), but that’s followed by 250842 written by hand, where yours has 1936 written by hand. Two panels I took a quick look at show 842v and 842k on their backs.
    I’m assuming that the 240 refers to the DB9 coupe and 250 designates the Volante, so my car is Volante #842.
