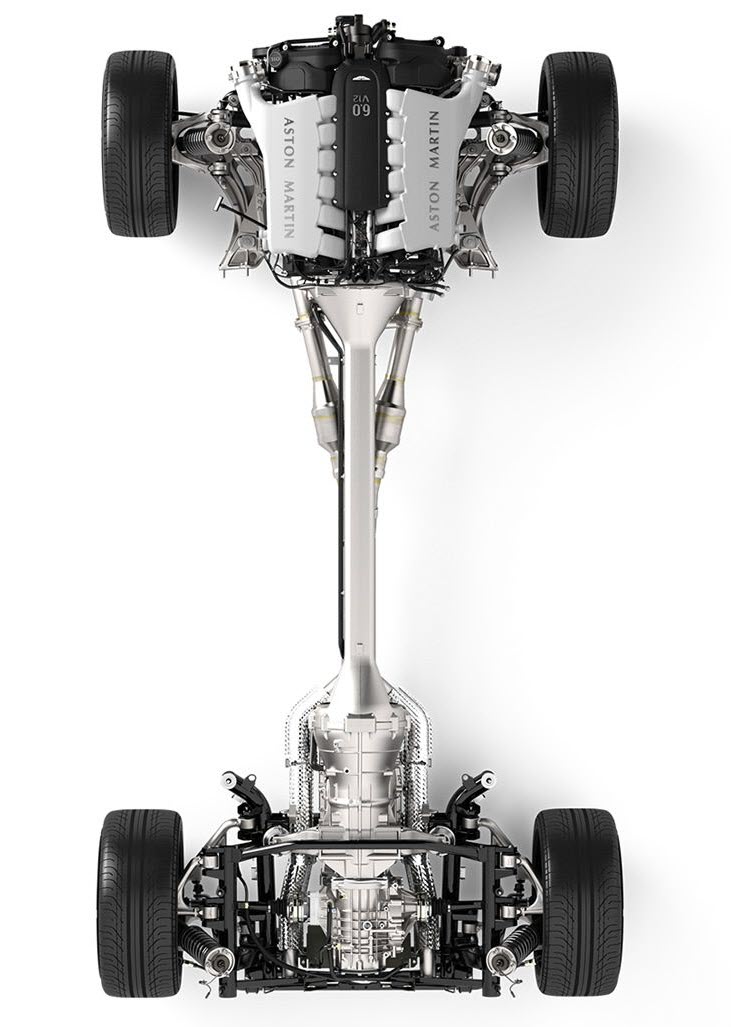

The Aston Martin DB9 has a very cool drivetrain support system. At the front the engine and suspension system is all mounted to a subframe. At the rear the transmission, differential and suspension system is mounted to a rear subframe. Connecting the Front and Rear is the ‘Torque Tube’ that comes off the back of the engine and links to the front of the transmission. All together you can literally drop the entire power train out of the car by disconnecting the subframes. Why talk about this now?

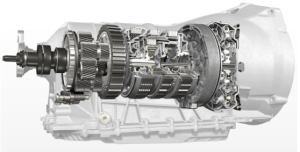

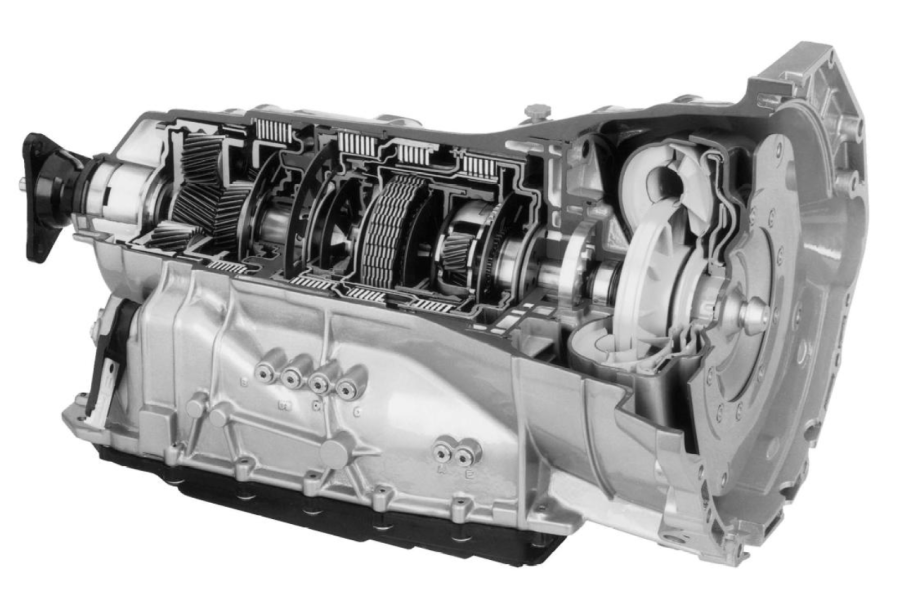

At the rear of the car if you need to do some work on the transmission or suspension, it’s all mounted to that rear subframe. One component of the rear subframe is a lower crossmember that links the bottom right and left sides together making it more rigid, and also providing something to mount the rear plastic aerodynamic undertray to. I had removed this cross member to perform a full transmission fluid, filter and seal service (check out my article on that here). This article is about how to properly reinstall that crossmember after you’ve completed your other service work.
Continue reading “Installing the Rear Subframe Crossmember in an Aston Martin DB9”
